Is It Hard to Install Chain Link Fence

Is It Hard to Install Chain Link Fence

Chain link fences, with their distinctive patterns, are a familiar sight. They are widely used in our neighborhoods, playgrounds, and other properties for security purposes. It promises security and privacy to the property owners.

Chain link fences are a perfect, trustworthy companion for your yards and properties. It is also the easiest fence to install yourself due to its interwoven metal mesh. However, it can still be tricky and challenging for some people.

This is why we are here to help you out! In this article, we provide you with a comprehensive step-by-step guide on how to install a chain link fence. We have also discussed the most commonly faced problems during fence installation.

So read till the end to safeguard your homes and properties with chain link fences!

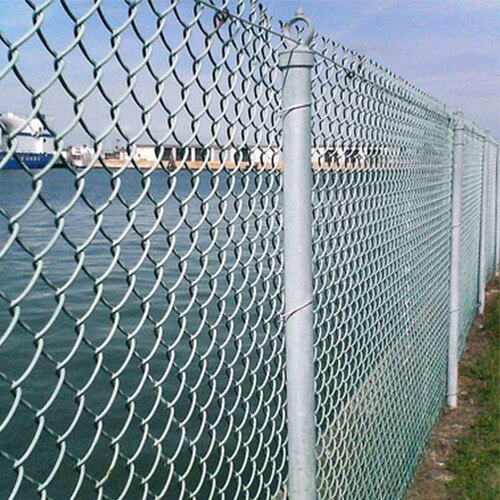

What is a Chain Link Fence?

What is a Chain Link Fence?

A chain link fence is a highly versatile and widely used type of fencing that combines simplicity, durability, and affordability. It is a grid-like structure made primarily of interwoven metal wires forming a diamond-shaped pattern. Due to this reason, it is also known as wire mesh or cyclone fence.

The galvanized steel wires of a chain link fence are coated with zinc, which makes them resistant to corrosion and rust. It can last for many years with minimal maintenance. This is an ideal fence to secure both commercial and residential properties.

They are also valued for their transparency, as it allows visibility from both inside and outside the enclosed area. It does not enclose and locks the property completely like wood or vinyl fences. You can have a clear view of your property without compromising on the security due to chain link fences.

Furthermore, chain-link fences are relatively cost-efficient compared to other fencing and security options. Along with this, their straightforward design simplifies the installation process. You can easily set up this fence around the property by yourself without needing any external help.

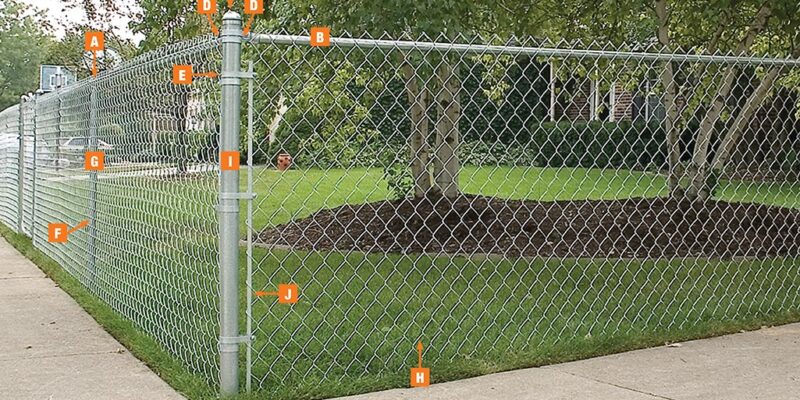

How to Install a Chain Link Fence?

How to Install a Chain Link Fence?

Safeguarding your homes and properties with proper security arrangements is an essential step these days. It is crucial to take appropriate security measures to protect the safety and privacy of your loved ones. One of the best methods to secure your house and building is through a chain link fence.

Chain link fences are highly durable and can be set up easily. You will not have to invite a team of technicians or have an extraordinary tool kit for installing mesh fencing. However, here are some tools and materials that you will need during the installation process:

  1. Chain link fence materials (mesh, posts, rails, fittings)
  2. Concrete mix
  3. Tension wire (optional)
  4. Gate(s) (if needed)
  5. Top rail (optional)
  6. Post hole digger
  7. Level
  8. Measuring tape
  9. String and stakes
  10. Wrench or pliers
  11. Tamping tool
  12. Safety gear (gloves, eye protection)

If you are a DIY enthusiast, you would probably have most of these items in your toolkit inventory. However, these materials can be easily sourced from multiple online and offline stores. After ensuring that you have all the necessary materials, follow the below-mentioned steps to set up your chain link fence:

1. Plan Your Fence Layout

It is recommended to plan the location and layout of the chain link fence before starting the installation process. This will give you a clear idea of how the final version will look. You can start by measuring the length of the fence line accurately.

Mark the placement of terminal posts and check local building codes and guidelines to determine if you need any specific permit for the fence installation.

2. Dig Post Holes

Using a post hole digger, dig holes for the corner, end, and gate posts. The depth of the holes should be approximately one-third the height of the fence above ground. You should also place a few inches of gravel or crushed stones at the bottom of each hole for proper drainage.

3. Set Corner and End Posts

Insert the corner and end posts into the holes you have dug. Fill the holes using a concrete mix and allow the concrete to set and secure.

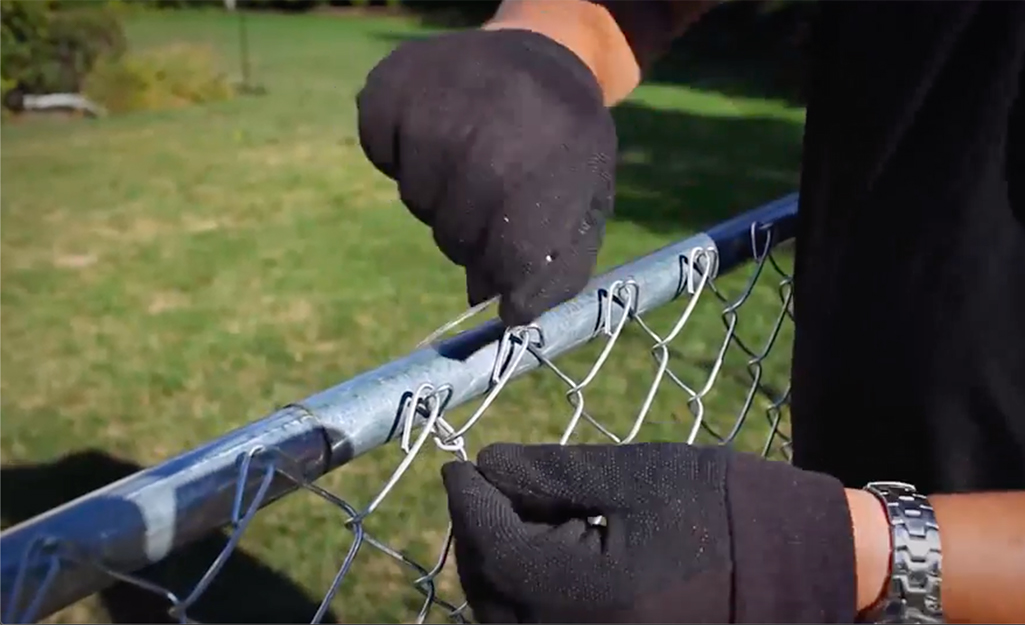

4. Stretch and Install Mesh

Unroll the chain link mesh along the fence line from the corner or end post. Secure the mesh to the posts using tension bands, bolds, and nuts. Use the fence stretcher for a sturdy finish.

Once the mesh has been successfully placed, install line posts and attach rails and fittings. You can also install gates as per your requirements, area, and budget.

5. Final Adjustments and Finishing

Once you have set up the chain link fence, check the entire arrangement for alignment, levelness, and stability. Make any necessary adjustments and tighten all the fittings and connections. Trim any excess mesh if needed and regularly maintain your chain link fence.


One can’t overlook the role of a well-constructed fence in securing our homes and properties. It serves as a vigilant guard that provides protection and peace of mind. Chain link fence is a versatile fencing solution for all kinds of properties and yards.

It comes in a variety of design patterns, weights, and thicknesses to fit in everybody’s requirement list. It can be used for both temporary and permanent security solutions. However, the biggest advantage of a chain link fence lies in its ease of installation and maintenance.

Whether you are an expert DIY enthusiast or a newbie, you can easily install a chain link fence without any external help. So secure your homes and personal spaces with chain link fences and bid farewell to all the safety concerns!
