How to Clean a Snowblower Carburettor

0

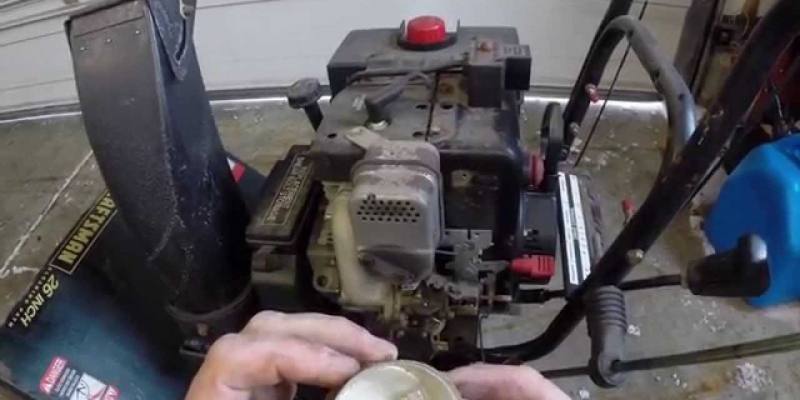

Snowblower Carburettor

A Snowblower Carburetor is the part of the motor where the combination of fuel and air takes place in a definite ratio for the combustion process. The carburetor in a car or any other vehicle is very important as it is essential to the motor receiving the fuel it needs, in the air-fuel ratio it requires to perform.

The snowblower carburettor comprises various parts such as carburetor bowls, carburetor gaskets, carburetor kits, carburetor nozzles, carburetor, choke lever, diaphragm kit, floats, pins and kits, gasket set, main jets, needles, valve and kits, primer bulbs, and springs.

The main jet or venturi draws the fuel from the bowl. There is an emulsion tube that mixes some air into the flow. Most of the fuel tanks are gravity flow into the carb bowl, so no fuel pump is needed. Hence, it is cost-efficient.

Effects of Dirty Carburettor on Engine

Dirty Carburettor reduces engine performance. The Carburetor is the main component responsible for metering and delivering the air-fuel mixture required for the engine to run. A bad carburetor may result in an engine with sluggish acceleration, and a noticeable reduction in power and fuel efficiency.

The smoothness of work gets on decreasing as the carburetor goes on damaging. Hence the routine check-up of the carburettors should be done to remain the Snowblower Engine safe and secure and provide much more life to the engine. In case if your Snowblower not starting then make sure to check the carburetor first.

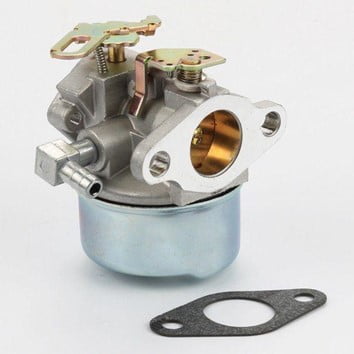

Symptoms of Dirty Snowblower Carburetor

Symptoms of Dirty Snowblower Carburetor

If your snowblower not working then there may be a various reason for that. First one is the dirty carburetor and it should be urgently cleaned. There are some possibilities that may indicate a dirty carburetor which is mentioned below:

  1. Your snowblower engine turns off and does not start.
  2. Sometimes it will start but have difficulty in running.
  3. The engine is sluggish or has jerks. This might be the result of the engine running lean due to the improper air-fuel ratio mixture. This is the case when the snowblower engine might be receiving more air and less fuel due to the dirty carburetor.
  4. Sometimes black smoke can be noticed coming out from the exhaust. This is the sign that the engine is running rich which means the dirty carburetor has caused the engine to receive much fuel mixed with very little air.
  5. If the fuel consumption increases, then it is a sign that your carburetor needs to be cleaned.

If any of the above symptoms are seen, then the carburettor should be checked and have maintenance work on it.

Cleaning of the Carburetor if Snowblower Not Working

If your Snowblower not working or having any problems running for a long period of time or not starting at all then the issue probably lies in the carburetor. Most of the Snowblower Carburetor is very easy to tackle the problem and repair it by yourself. For repairing easily go through the steps provided below:

  • Remove the Rear Snowblower Shroud
  • Remove the fuel line.
  • Remove the primer line.
  • Remove the Carburetor from the Snowblower.

Disassembling the Carburetor

  1. Remove the backing plate from the Carburetor.
  2. Bring out the old Gaskets off the Carburettor.
  3. Clean the outside of the Carburetor.
  4. Remove the carburetor bowl.
  5. Remove the float and metering needle.
  6. Remove the main jet.
  7. Remove the emulsion tube.
  8. Remove the bow-O-ring.

Cleaning the Carburetor:

Using Carburettor cleaner

  • Spray all the opening and passages of the carburetor.
  • Spray the emulsion tube, main jet, and bowl.

Using Ultrasonic Cleaner

  • Turn it on.
  • Drop the pieces you want to clean into the water.
  • Set the amount of time.
  • Run 2-3 cycles in this cleaner.
  • Use compressed air to dry the carburetor and its parts.

Reassembling the Carburetor:

  • Replace the emulsion tube.
  • Reinstall the main jet.
  • Replace the float and metering needle.
  • Install a new bowl gasket.
  • Replace the bowl.
  • Replace the bowl screw.
  • Reattach the governor spring to the throttle lever.
  • Thread the mounting bolts through the gasket., carburetor, and backing plate.

Reinstalling the Carburetor:

  • Reattach the throttle linkage.
  • Mount the carburetor back on the snowblower.
  • Replace the primer hose.
  • Replace the fuel line.
  • Replace the rear snowblower shroud.

After reinstalling the complete setup, the Snowblower Carburetor will start working smoothing with issues and any noisy sound.

Completing the above step properly, your snowblower carburetor will be repaired and ready for proper use. Following the above steps, you can easily maintain your carburetor at home by yourself.

Repairing your Carburettors and have a regular check, not only makes your engine run smoother but also enhances the life of the engine.

Cleaning of carburettors makes the engines long-lasting, low fuel consumption, and hence increases the efficiency of the engine.
